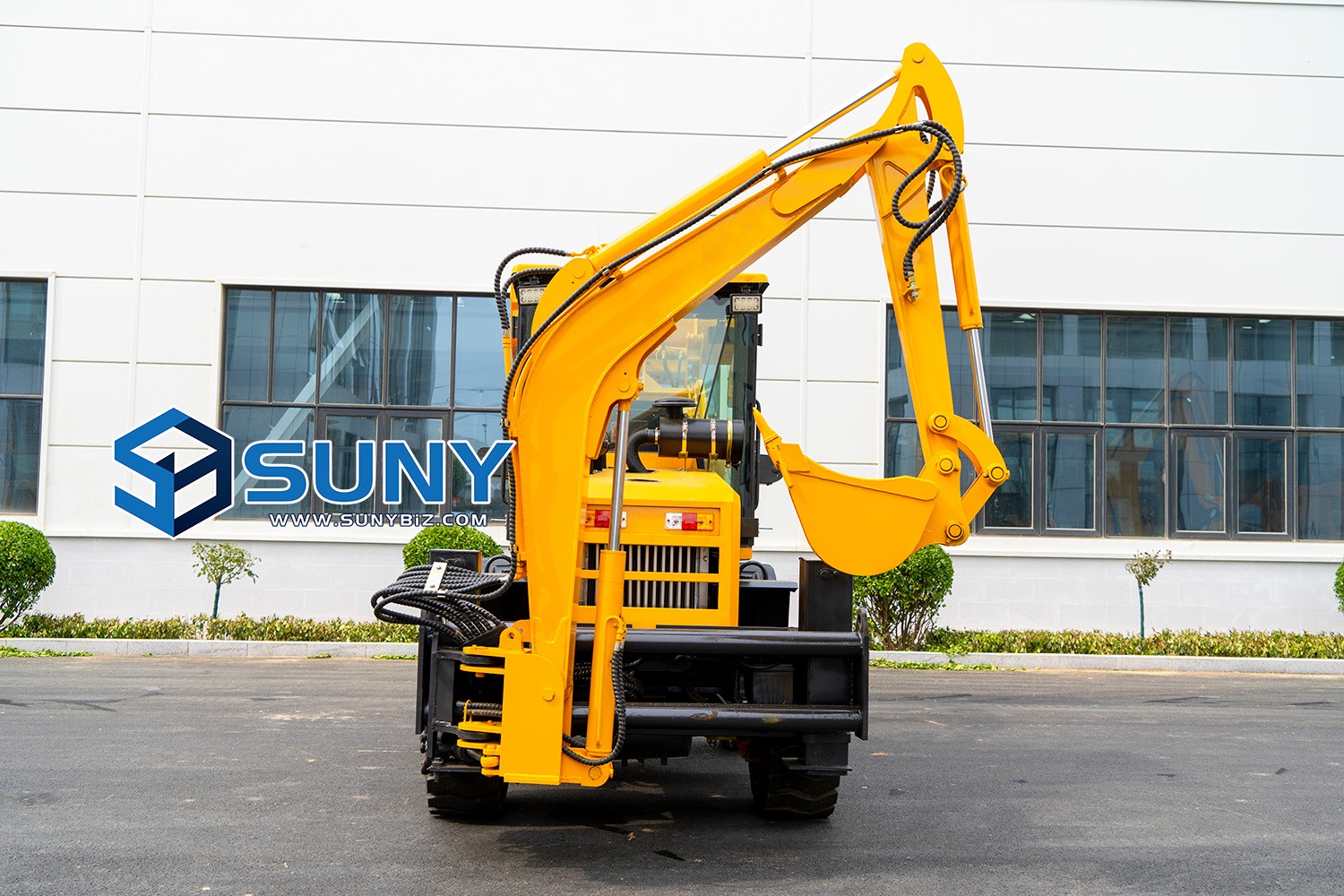

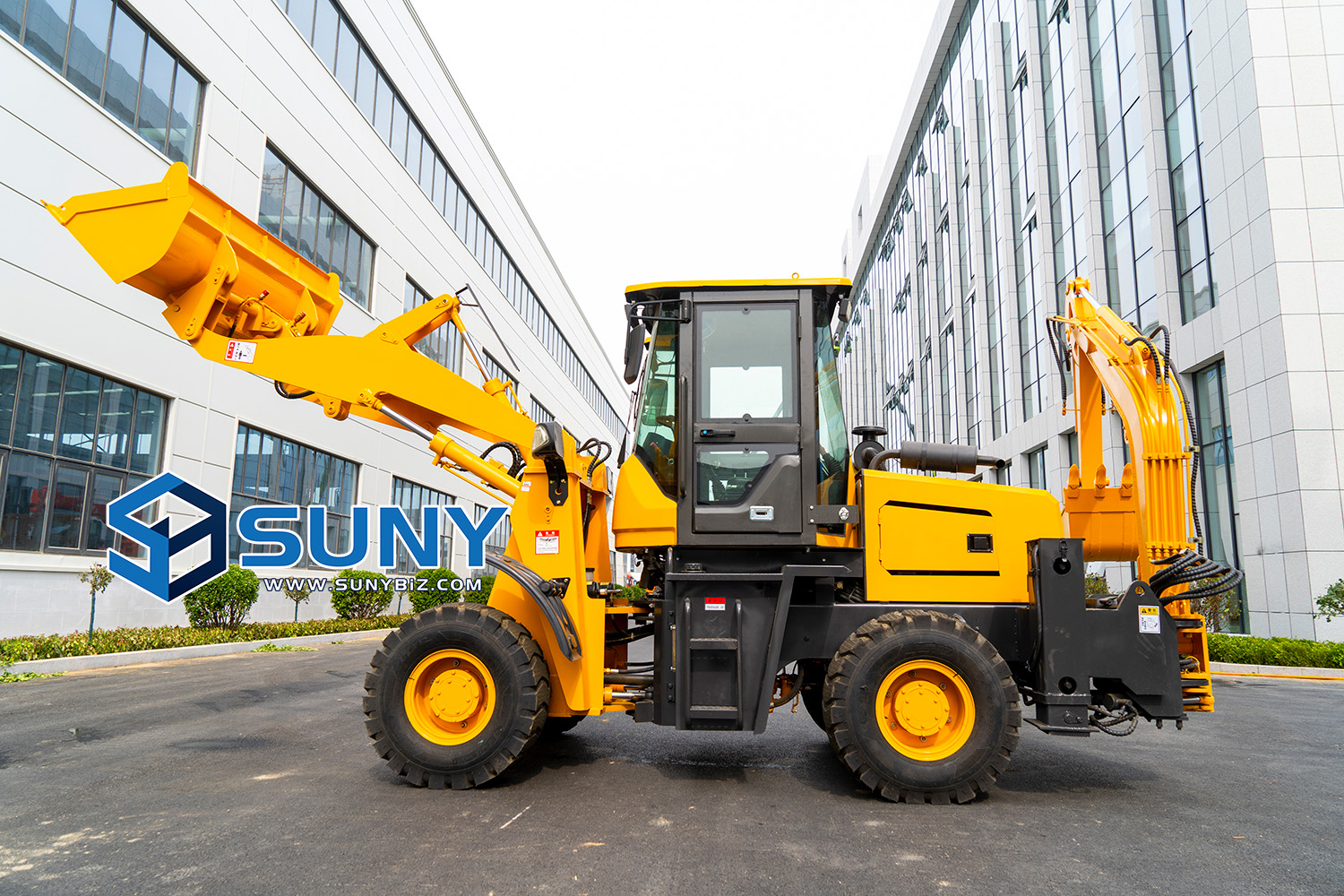

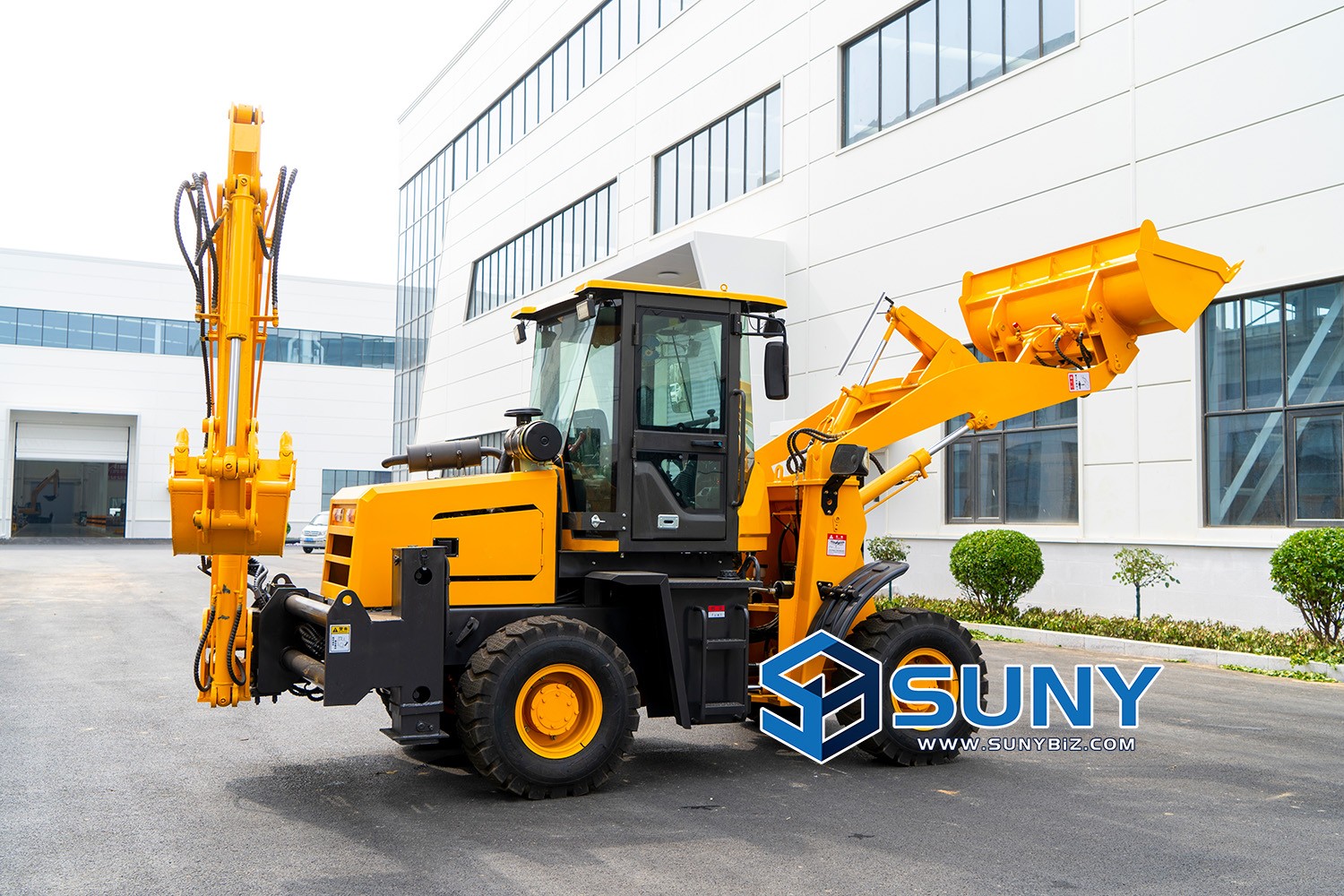

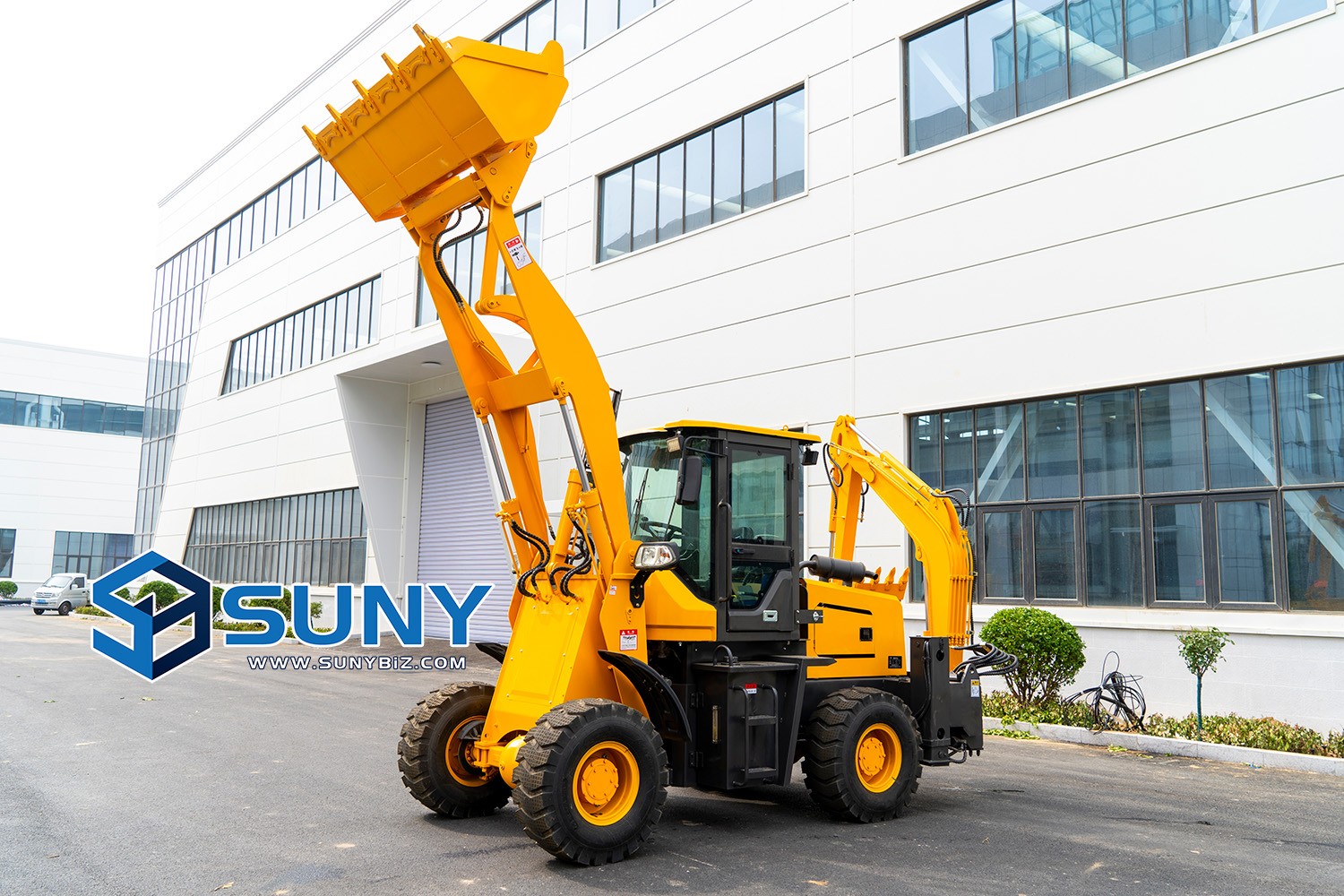

Model of Backhoe Loader |
SY48-18 |
Performance |
|
Operating weight |
4800 kg |
Driving type |
4x4 |
Operation type |
Hydraulic pilot joystick |
Dimension; |
5800 * 1850 * 2780 mm |
Wheelbase |
2315 mm |
Min. Turning Radius |
4000 mm |
Loader Performance |
|
Rated load |
1800 kg |
Bucket capacity |
0.7 m3 |
Max. Dumping height |
3300 mm |
Max. Dumping distance |
850 mm |
Max. Lift height |
4200 mm |
Optional attachments |
quick hitch, 4-in-1 multipurpose buckewood grapple , rotavator, pallet fork etc. |
Excavator Performance |
|
Outriggers |
Pivot Center, H-type. |
Excavator capacity |
500 kg |
Bucket capacity |
0.2 m3 |
Digging width |
400 mm |
Max. Digging depth |
2700 mm |
Max. Digging radius |
4600 mm |
Max. excavation and dumping height |
2200 mm |
Max. Excavate height |
4200 mm |
Optional attachments |
quick hitch , narrow bucket , hydraulic breaker , auger driller etc |
Engine |
|
Brand |
YUNNEI Engine |
Model |
YN27G |
Rated Power |
58 Kw (78 hp) |
Type |
4-cylinders, water-cooling, turbocharged. diesel |
Fuel tank |
40 liters |
Transmission |
|
Gearbox |
Fixed shaft type power shift |
Gear shift |
Forward 2 and reverse 2 |
Service brake |
Air over oil caliper type |
Parking brake |
Manual |
Tyres |
Front : 23.5-16 Rear : 23.5-16 |
Max. Travel speed |
24 km/h |
Torque Converter |
|
Model |
ZL29A |
Type |
Articulated fully hydraulic steering |
Turning angle |
33° |
