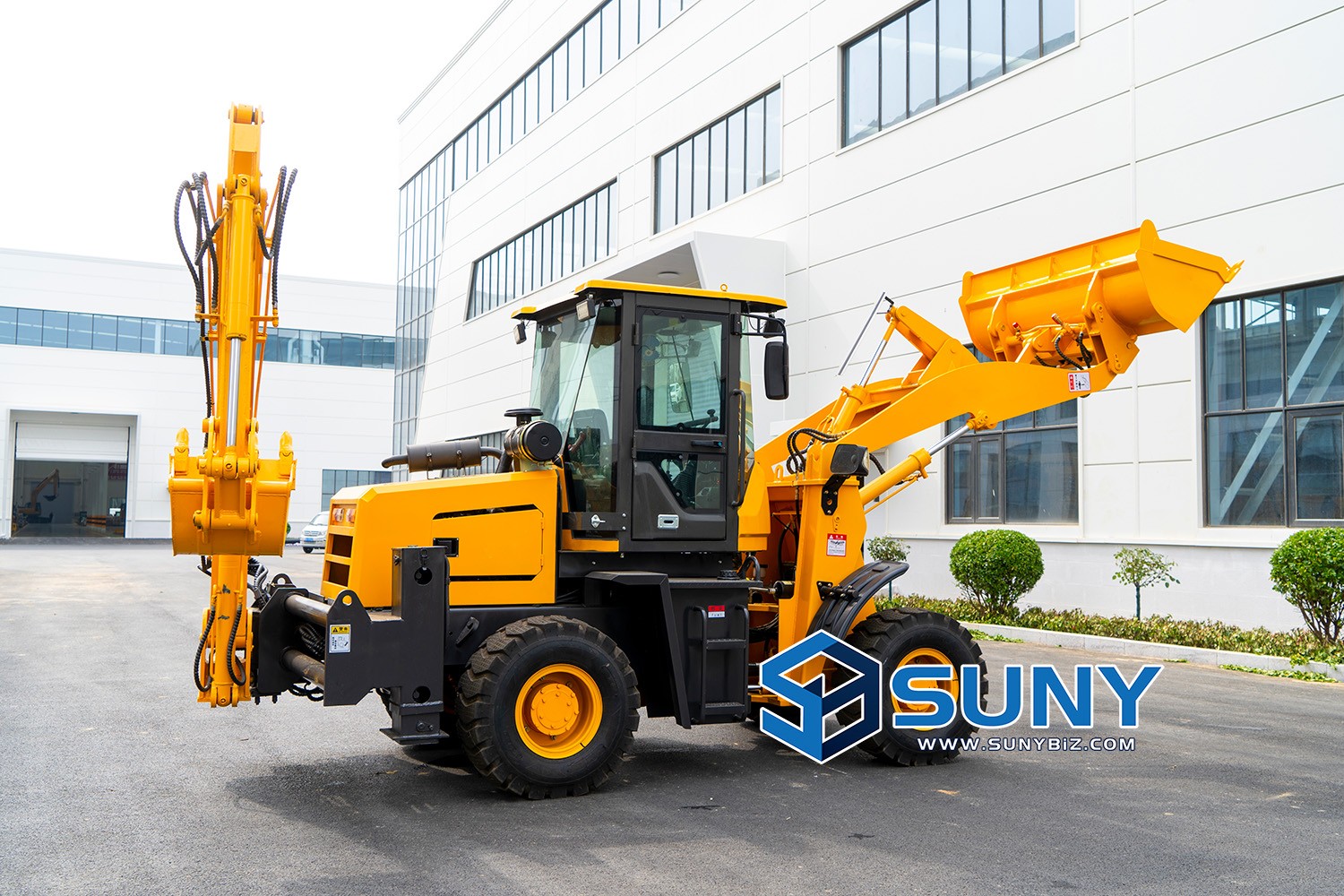

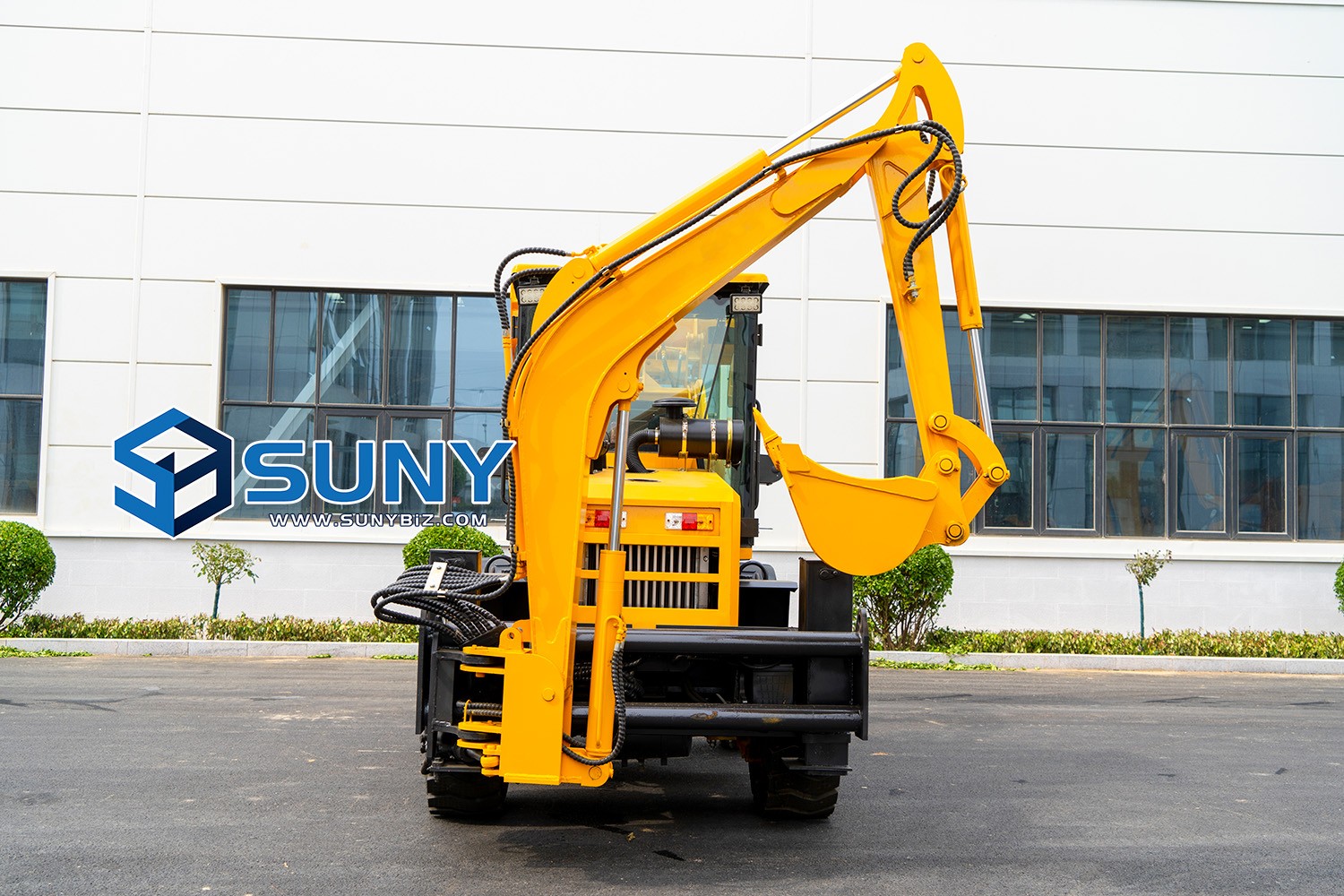

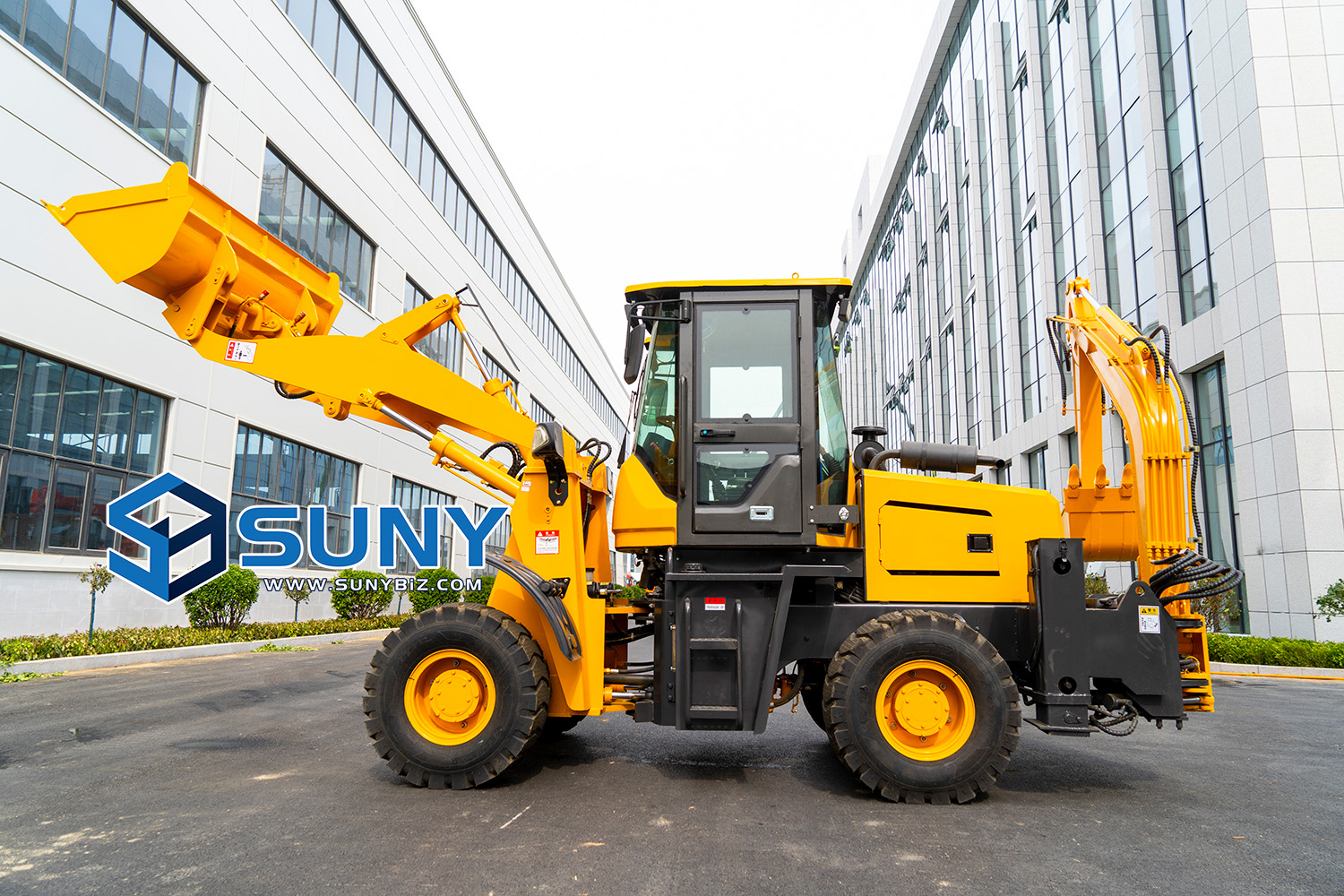

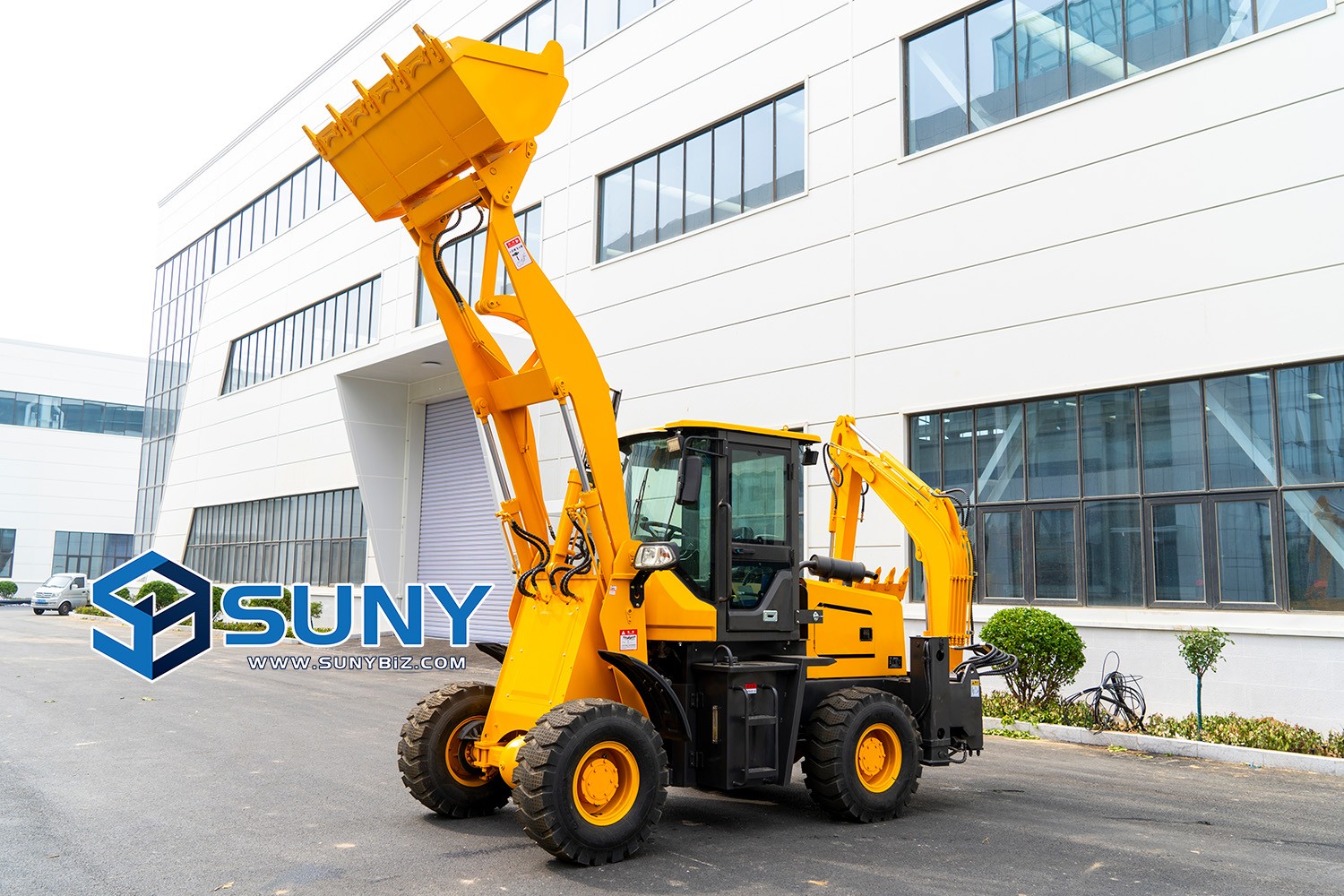

Backhoe Loader SY48-18 - 副本

Model of Backhoe Loader

SY48-18

Performance

Operating weight

4800 kg

Driving type

4x4

Operation type

Hydraulic pilot joystick

Dimension;

5800 * 1850 * 2780 mm

Wheelbase

2315 mm

Min. Turning Radius

4000 mm

Loader Performance

Rated load

1800 kg

Bucket capacity

0.7 m³

Max. Dumping height

3300 mm

Max. Dumping distance

850 mm

Max. Lift height

4200 mm

Optional attachments

quick hitch, 4-in-1 multipurpose buckewood grapple , rotavator, pallet fork etc.

Excavator Performance

Outriggers

Pivot Center, H-type.

Excavator capacity

500 kg

Bucket capacity

0.2 m³

Digging width

400 mm

Max. Digging depth

2700 mm

Max. Digging radius

4600 mm

Max. excavation and dumping height

2200 mm

Max. Excavate height

4200 mm

Optional attachments

quick hitch , narrow bucket , hydraulic breaker , auger driller etc

Engine

Brand

YUNNEI Engine

Model

YN27G

Rated Power

58 Kw (78 hp)

Type

4-cylinders, water-cooling, turbocharged. diesel

Fuel tank

40 liters

Transmission

Gearbox

Fixed shaft type power shift

Gear shift

Forward 2 and reverse 2

Service brake

Air over oil caliper type

Parking brake

Manual

Tyres

Rear : 23.5-16

Max. Travel speed

24 km/h

Torque Converter

Model

ZL29A

Type

Articulated fully hydraulic steering

Turning angle

33°
